ACHROMIC SERIES

ELEVATE
YOUR SOUND

Meet Avante Audio - a new voice in professional grade active loudspeakers

MANIFESTO

Avante understands that it takes passion in order to create an audio product that moves our customers forward. We don't simply aim for best-in-class -- we aim for best. With Avante, we break barriers by providing innovative audio engineering at affordable prices. We strive to move with you by creating products that perform far beyond expectation. Avante assures that your audio experience is delivered through a system that is engineered to appear as beautiful as it sounds. By bridging the relationship between user, design, and functionality, Avante provides a unique and attainable user experience. Avante strives to lead the industry with innovative and professional audio solutions at an affordable price. We believe in producing something we are proud to use. Everything we create is made with passion, creativity, and performance in mind. Avante gives more than audio, Avante gives a new way forward

- RISE UP!

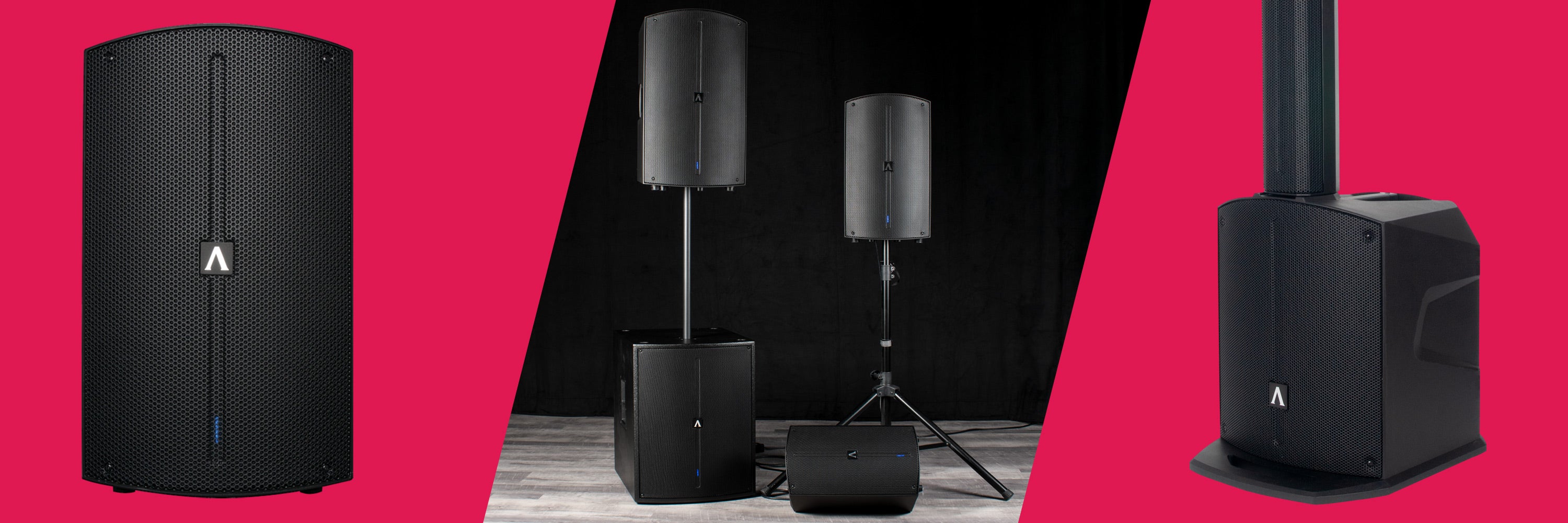

ACHROMIC SERIES

Type:10-inch, 2-way active loudspeaker12-inch, 2-way active loudspeaker15-inch, 2-way active loudspeaker15-inch active subwoofer18-inch active subwoofer
Frequency Range (-10db)70Hz-20kHz60Hz-20kHz45Hz-20kHz35Hz-160Hz35Hz-150Hz
@Nominal Coveraged90° x 60°90° x 60°90° x 60°Omni-direction, cardioidOmni-direction, cardioid
Output (Peak SPL @1M)121dB123dB124dB126dB127dB
Amplifier Power1000 W Dynamic, 250W Class D (LF) +50W Class AB (HF) RMS1200 W Dynamic, 350W Class D (LF) + 50W Class AB (HF) RMS1200 W Dynamic, 350W Class D (LF) + 50W Class AB (HF) RMS1600 W Dynamic, 500W RMS Class D1600 W Dynamic, 500W RMS Class D
Power Consumption400W400W400W600W600W
DSP FeaturesLCD screen with EQ and multiple presetsLCD screen with EQ and multiple presetsLCD screen with EQ and multiple presetsLCD screen with EQ and multiple presetsLCD screen with EQ and multiple presets
Driver Information10” Woofer w/2” Voice Coil. 1” HF Compression Driver12” Woofer w/2.5” Voice Coil. 1.35” HF Compression Driver15” Woofer w/2.5” Voice Coil. 1.35” HF Compression Driver15” Woofer w/ 3" Voice Coil18” Woofer w/ 3" Voice Coil
Input /Output ConnectorsBalanced female XLR/ ¼” combo jack, 2 x RCA (phono). Balanced Male XLR OutputBalanced female XLR /¼” combo jack, 2 x RCA (phono). Balanced Male XLR OutputBalanced female XLR/ ¼” combo jack, 2 x RCA (phono). Balanced Male XLR Output2 x Balanced female XLR/ ¼” combo jacks, 2 x XLR male balanced outputs2 x Balanced female XLR/ ¼” combo jacks, 2 x XLR male balanced outputs
EnclosureH-PP MoldedH-PP MoldedH-PP Molded15mm Plywood15mm Plywood
Grill1.2 mm steel1.2 mm steel1.2 mm steel1.5 mm steel1.5 mm steel
Handles1 Top1 Top, 1 Side1 Top, 1 Side2 side2 side
Fly Points2 Top 1 Back2 Top 1 Back2 Top 1 BackNoneNone
Pole MountingDual position 0° , 7.5°Dual position 0° , 7.5°Dual position 0° , 7.5°Ground StackGround Stack
Power Input115V/60Hz or 230V/50Hz (non switchable)115V/60Hz or 230V/50Hz (non switchable)115V/60Hz or 230V/50Hz (non switchable)115V/60Hz or 230V/50Hz (non switchable)115V/60Hz or 230V/50Hz (non switchable)
Dimensions (HxWxD)20.9" x 12.2" x 11.8"
(530mm x 310mm x 299mm)
24.7" x 14.4" x 13.9"
(628mm x 365mm x 354mm)
28.7" x 16.7" x 16.3"
(728mm x 425mm x 414mm)
24.1" x 16.9" x 23.9"
(612mm x 430mm x 607mm)
26.1" x 20.1" x 25.5"
(662mm x 510mm x 647mm)
Net Weight25 lbs (11.3 kg)35 lbs (15.9 kg)42 lbs (19.1 kg)57 lbs (25.9 kg)73 lbs (33.1 kg)

On-board DSP

for the best possible sound
NORMALLIVECLUBSPEECH
DSP INFORMATION (Loadspeakers)
1. Mode:A. NormalB. LiveC. Club4. Speech
2. LOCATION:A. PoleB. MonitorC. Bracket
3. TREBLE:-10dB~ + 10dB
4. BASS:-10dB~ + 10dB
5. LED:A. OffB. OnC. Limit
6. RESET:A. YesB. No
7. INFO:

DSP INFORMATION (Subwoofers)
VOLUME:-80dB~ + 10dB
1. EXIT:Return to system volume panel
2. MODE:A. NormalB. Enforce
3. LOCATION:A. NormalB. CardiodidC. Endfire
4. DELAY:+ - 34 feet / 0 - 10.5 meters
5. POLARITY:A. NormalB. Reverse
6. CROSSOVER:A. 60Hz
E. 150Hz
B. 80Hz
F. A10
C. 100Hz
G. A12
D. 120Hz
H. A15
7. UNIT:A. MetersB. Feet
8. LET:A. OffB. OnC. Limit
9. RESET:A. YesB. No
10. INFO:
11. EXIT:Return to system to volume panel

8 SUBWOOFER CROSSOVER PRESETS


BRAND PROMISE

Avante audio products are designed to take your career to its next level. Fortified with decades of experience in audio solutions, Avante is the launching point for professional-grade audio technologies. Avante believes in producing high-end products at attainable prices in order to provide the greatest possible audio experience for its users. As a result, Avante provides beautiful, reliable, and performant audio solutions that are crafted with the purpose of delivering excellence at an unbelievable value. Avante audio solutions are designed to move forward with you.

Because We're Passionate About Professional Audio!

PRESS RELEASE

Debuting this month at InfoComm, ADJ Group of Companies will launch AVANTE Audio – A new professional audio brand born from a passion for audio excellence. AVANTE believes in producing high quality products – that offer both sonic and aesthetic beauty – at attainable prices in order to provide the greatest possible audio experience for its users.

AVANTE Audio is proud to launch with the Achromic Series, a complete range of active loudspeaker cabinets that offer powerful output, detailed audio clarity, built-in DSP, and sleek exterior designs. Created for musicians, bands, houses of worship, audio production companies and rental houses, the Achromic Series speakers are equally suited to permanent installation as they are to one-off and touring productions.

The Achromic Series comprises three full-range loudspeaker options, the 10-inch A10, 12-inch A12, and 15-inch A15. All three models feature a Bi-Amped, high efficiency fan cooled Class A/B switching power amp for the highs, and a Class D power amp for the low end. Each cabinet was carefully designed with components specifically chosen to provide high SPL levels while ensuring smooth coverage across all frequencies in a light weight package ranging from the A10 at 28.7 lbs. (13 kg) up to the A18S at 83.8 lbs. (38 kg). Read more...

Power Ranges from 1000 Watts for the A10 to 1200 Watts for the A12/A15. Designed to work for you, the full-range speakers feature a 35mm pole socket with two position options – zero or a 7.5-degree downward tilt for stand mounting but can also be flown via the built-in M10 fly points, wall mounted or used a main or floor monitor.

To provide enhanced bass response and extended low frequency coverage, the Achromic Series also includes two active DSP Controlled sub options with configurable output directivity. The cardioid output option allows you to better focus your low end in a ground stack configuration for tight clean bass. The A15S offers a 15-inch woofer with a 3-inch voice coil, while the A18S is fitted with an 18-inch woofer with a 3-inch voice coil. Both feature an integrated powerful Class D amplifier that delivers an impressive 1600 Watts.

Every model in the Achromic Series features an advanced easy to use Digital Signal Processor accessible via an LCD screen on the rear panel of the speaker. The built-in DSP allows you custom optimization to configure the speaker specifically for your needs: Music Type /Room/ mounting option/EQ/ and System configurations.

“Avante Audio is a project that our team has been working hard on for some time, and I am excited to now be able to unveil it to the industry,” said Toby Velazquez, President of the ADJ Group of Companies. “This premium brand will bring a new voice to the professional audio market, providing innovative audio engineering at affordable prices. Our mission, with Avante, is to provide a high quality audio experience delivered through a system that is engineered to appear as beautiful as it sounds. Everything we create will be made with passion, creativity, and performance in mind. Avante gives more than audio, Avante gives a new way forward – rise up!”

Formed as a new division of the extremely successful ADJ Group of Companies (ADJ Products, Elation Professional, DuraTruss, Acclaim Lighting, American Audio & Accu-Cable), AVANTE Audio is an independent business unit focused on developing, manufacturing, and marketing innovative professional audio equipment at affordable prices.

The Avante Audio range will be on display at InfoComm 2017 in Orlando, FL from Wednesday 14 through Friday 16 June at booth #5071. The Achromic Series of professional-caliber active speakers will begin shipping worldwide in late September 2017.


For more information visit: www.avanteaudio.com Or find Avante Audio on  , or  @avanteaudio less
